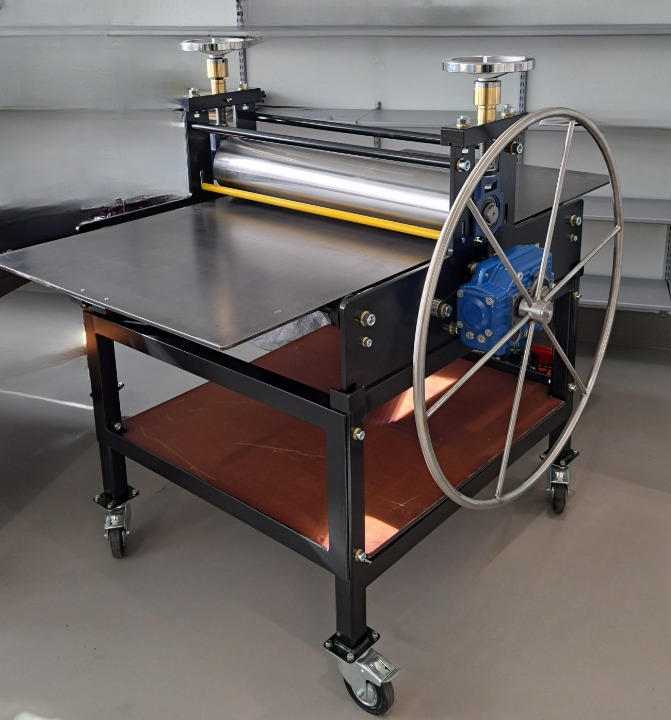

Halepress M80 – heavy-duty etching press for professional use
The Halepress M80 is a powerful and heavy-duty etching press designed for professional printmaking, educational institutions, and intensive workshop use. Its large working area and exceptionally high pressing force enable consistent, high-quality results even for large-format prints.
The M80 combines strength, precision, and durability – making it a reliable solution when maximum performance and repeatability are required.
Why choose the M80?
-
Large working area (80 × 160 cm) – ideal for large prints
-
Very high pressing force (up to 8000 kg)
-
Coarse and fine adjustment scales – precise and repeatable pressure control
-
Torque-controlled pressure adjustment – consistent results
-
Heavy-duty construction – built for continuous use
-
Includes stand with wheels
Technical specifications
-
Bed size: 80 × 160 cm
-
Roller diameter: 160 mm
-
Maximum pressure: approx. 8000 kg
-
Pressure adjustment: torque wrench, max. 150 Nm
-
Overall dimensions (with stand):
-
Length: 160 cm
-
Width: 120 cm
-
Height: 142 cm
-
Weight: approx. 375 kg
Additional information
-
Delivered with stand (lockable wheels available)
-
Felts sold separately
-
Designed for heavy-duty professional and institutional use
-
Custom sizes available on request
-
Note: Due to its size, on-site assembly may be required
- Gear model and color may vary from the image depending on availability
